Kona EV range at cold temperatures (100% SOC range 228 km at -22°C)

I will concur that you are spot on with your observations. Kona will loose 50% of it battery capacity in temperatures colder than -30C. I had a 240km trip at -34C before any wind chill yesterday and it took 100% of the battery capacity with me driving almost 1/3 of the way with the climate control off so I could make it. I was dressed up in my Expedition Canada Goose parka with seat warmer and steering wheel heat on but it still was an unpleasant trip.

Thanks for the confirmation of our experience.

I could not stop heating because of the children.

It is what it is.

Range side, is it safe for models without the battery heater to charge while below freezing? Isn't that bad for lithium in general?

Sent from my ONEPLUS A5000 using Tapatalk

Range side, is it safe for models without the battery heater to charge while below freezing? Isn't that bad for lithium in general?

Sent from my ONEPLUS A5000 using Tapatalk
Generally speaking yes, but the on board BMS will limit delivered charge as appropriate. The battery can get very cold even with battery heater in situ. I have recorded pack temps as low as -21C that did not meet the various variable such as temp and lower SOC that would engage the battery heater automatically. Even at that low temperature the pack can still take a limited charge. The LG/Hyundai engineers have put enough thought into this that you don't have to worry about it.

Last edited:
Kona's battery formulation is cobalt based, so it can take normal "trickle" charge from home outlet also at very low temperatures.
Fast charging is of course subject to cold gating and active battery warmp by built in heater.

Right you guys are. Come to think of it, even a level two charger is probably considered a trickle charge being something like 0.1C of pack capacity. Without having seen apu's findings, I wonder how much low temperature charging the pack can withstand, 0.25C maybe?

Sent from my ONEPLUS A5000 using Tapatalk

There is no choice other than run the heat at 27C at highway speed.

Finally, we get some understanding.

The fogging and frosting are caused by the temperature difference.

Outside temperature and speed simply start winning.

I see that you do not have experience with temperatures being constantly, 24/7, below -20, -30, and getting to -40. Add -10 for windchill.

And that windchill at 110 km/hr adds more than -10 to those -20 / -30.

It is getting to the point when you need some 15 kWh/100km for the engine and 12 kWh/100 km for heating and airflow.

That is real Canadian winter.

Squeaky snow under your shoes.

Nostrils start being sticky.

EV starts giving off sounds which you do not hear normally when it is not that cold.

That is what I and Apu are talking about and you may not have much experience with.

You know that Apu is from Manitoba.

I am from central Alberta.

The East and West coasts are much different.

Interior BC, here. I echo your collective sentiments regarding driving in winter. The recent ‘atmospheric River’ that was bee-lining from South Pacific to west coast of Ak has pushed us into a 70’s-era deep freeze (while allegedly leaving Anchorage at 10°C+). I pre-heat car at max temp (27°C) solely to expedite that process but agree running it that high sure sucks the range from the battery. I’m gonna cross reference dashboard air temps with a digital thermometer bc I don’t think ramping down to 20°C on the display is *anywhere* near that in reality. Too bad there wasn’t a dehumidifier that could be incorporated into the works. #CanadianWinters

One minor beef I have w/design is the accumulation of snow/ice around the wheel wells and the constant monitoring required to keep that build-up as minimal as possible to reduce the teeth-jarring that occurred of there’s contact w/ road surfaces. This wouldn’t likely be an issue w/ a heated garage.


Sent from my iPhone using Inside EVs

One minor beef I have w/design is the accumulation of snow/ice around the wheel wells and the constant monitoring required to keep that build-up as minimal as possible to reduce the teeth-jarring that occurred of there’s contact w/ road surfaces. This wouldn’t likely be an issue w/ a heated garage.

Sent from my iPhone using Inside EVs

I just ignore the accumulation as I haven't appreciated a car that doesn't do this to some extent. The real teeth jarring occurs when those McPherson shocks stiffen up to pretty much to zero compression/extension travel at -30C or so.

I just ignore the accumulation as I haven't appreciated a car that doesn't do this to some extent. The real teeth jarring occurs when those McPherson shocks stiffen up to pretty much to zero compression/extension travel at -30C or so.

Agreed.

At -30C the physical properties are different.

There are sounds you likely have not heard before.

McPherson shocks at -30C remind me of our testing driving in 2018 when we had the rich choice between two EVs - Chevy Bolt and Kona.

Chevy Bolt became a no-no after several kilometers. The shocks were shocking.

Interior BC, here. I echo your collective sentiments regarding driving in winter. The recent ‘atmospheric River’ that was bee-lining from South Pacific to west coast of Ak has pushed us into a 70’s-era deep freeze (while allegedly leaving Anchorage at 10°C+). I pre-heat car at max temp (27°C) solely to expedite that process but agree running it that high sure sucks the range from the battery. I’m gonna cross reference dashboard air temps with a digital thermometer bc I don’t think ramping down to 20°C on the display is *anywhere* near that in reality. Too bad there wasn’t a dehumidifier that could be incorporated into the works. #CanadianWinters

One minor beef I have w/design is the accumulation of snow/ice around the wheel wells and the constant monitoring required to keep that build-up as minimal as possible to reduce the teeth-jarring that occurred of there’s contact w/ road surfaces. This wouldn’t likely be an issue w/ a heated garage.


Sent from my iPhone using Inside EVs

"I pre-heat car at max temp (27°C) solely to expedite that process but agree running it that high sure sucks the range from the battery"

Sometimes I preheat more than once while it is still connected to the Juice Box. Good for children's rear seats.

When starting the car you see what the consumption would be per 100 kW. I see numbers like 80 kWh per 100 km.

Since Dec 12, we have had some four weeks of constant temperatures around -30C most of the time. Sometimes diving to -40C (with wind chill -50C). Last Sunday it briefly got to -15C and it felt like a really warm pleasant afternoon.

Pre-heating at 27C and keeping heating at 27C for a 180 - 200 km daily commute at around -30C or lower results for us in average consumption of 27-28 kWh per 100 km. Once I saw 33 kWh per 100 km. I am talking about the numbers when you turn off the car at the end of the day.

I do not like it but it is what it is.

At -30C or lower the battery capacity needed for a 90 km one-way trip is about 40 - 45%. Airflow heated to +27C all the time.

A heated garage is not a priority for us at the moment. We need to put together our 101 yr old house first.

And install a natural gas micro-cogeneration (micro-CHP) instead of a 65 yr old natural gas furnace. Once done, we will produce our own electricity at 4 - 6 cents per kWh and will produce heat for our house at the same time.

Currently, we pay 27 cents per kWh for charging overnight.

We charge to full up to 20 nights a month, depending on the shifts.

60 kWh x $0.27/kWh = $16.20

20 nights x $16.20 = $324

Our monthly electricity bills are between $300 and $400 / month depending on the shifts.

Last edited:
Interior BC, here. I echo your collective sentiments regarding driving in winter. The recent ‘atmospheric River’ that was bee-lining from South Pacific to west coast of Ak has pushed us into a 70’s-era deep freeze (while allegedly leaving Anchorage at 10°C+). I pre-heat car at max temp (27°C) solely to expedite that process but agree running it that high sure sucks the range from the battery. I’m gonna cross reference dashboard air temps with a digital thermometer bc I don’t think ramping down to 20°C on the display is *anywhere* near that in reality. Too bad there wasn’t a dehumidifier that could be incorporated into the works. #CanadianWinters

One minor beef I have w/design is the accumulation of snow/ice around the wheel wells and the constant monitoring required to keep that build-up as minimal as possible to reduce the teeth-jarring that occurred of there’s contact w/ road surfaces. This wouldn’t likely be an issue w/ a heated garage.


Sent from my iPhone using Inside EVs
The a/c runs as part of the Defrost cycle to act as a dehumidifier is my understanding.

If he is able to note the date/time it took/takes place, that really helps the techs narrow their search of the data logs to see what is causing the resistance heater to trip off when it is that cold.
My son just took his M3 in for some service that needed to be done. Cost him $2000 to get some sensors fixed, suspension control arms replaced (3rd time, first two were under warranty) and his charge door replaced. His trunk latch doesn't work properly either (only by phone), but they wanted another $1100 just to replace that. He can live with that. And his glass roof is cracked, but he is going to live with that, too.

Anyway, he asked them about the heater not working in cold weather. Their solution again was to replace it, (another $2000), so he is living with that, too. And there is a backlog for these parts, so could be a long wait anyway to get it fixed. Luckily, here in Vancouver, it rarely gets that cold.

Incidentally, just today, I found this. So seems this issue is well known.
https://insideevs.com/news/562350/tesla-heat-failure-no-heat-pump/

So @navguy12, you might want to really get your car checked out before your warranty expires. Out of warranty repairs are very expensive with Tesla.

I've now had two winters of driving with the Kona, and I park outside without access to any sort of plug. Recently I was parked inside a friend's garage for the night to use their plug while visiting, the air temp was -10C or so outside, and on the trip home all three DCFC were immediately charging at full power for the SOC. I was intrigued. Normally I've found it peaking at 44kW when at a DCFC in winter. On another recent road trip it was plugged in to an L2 charger overnight, again about -10C, but did not have a departure time set. The DCFCs I used that day peaked at 44kW. So now I'm curious to try charging in the cold but remembering to set the departure time while it's on an L2 overnight to see if I get good charging speeds.

If the current temperature trends hold I am due for a road trip of about 500km each way in -30C air temp soon. Will try to take detailed charging notes and find an L2 charger to top up on for a few hours prior to the trip to see if that allows me to get full power from the DCFC.

My son just took his M3 in for some service that needed to be done. Cost him $2000 to get some sensors fixed, suspension control arms replaced (3rd time, first two were under warranty) and his charge door replaced. His trunk latch doesn't work properly either (only by phone), but they wanted another $1100 just to replace that. He can live with that. And his glass roof is cracked, but he is going to live with that, too.

Anyway, he asked them about the heater not working in cold weather. Their solution again was to replace it, (another $2000), so he is living with that, too. And there is a backlog for these parts, so could be a long wait anyway to get it fixed. Luckily, here in Vancouver, it rarely gets that cold.

Incidentally, just today, I found this. So seems this issue is well known.
https://insideevs.com/news/562350/tesla-heat-failure-no-heat-pump/

So @navguy12, you might want to really get your car checked out before your warranty expires. Out of warranty repairs are very expensive with Tesla.
Cheers and thanks for the info.

Unless a code is thrown or I experience an issue, I won’t waste my time having the car checked out for a heating issue if I get all the heat I need.

In almost 50 years of car ownership, I have never had any manufacturer replace a piece of functioning hardware in the hopes of avoiding an issue after the warranty ran out.

Of course YMMV. :)

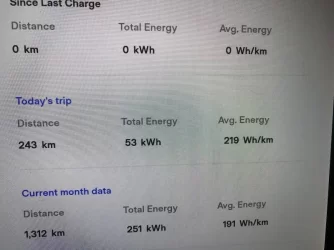

OT sidebar (range in cold temperatures): On 21 Jan, I drove the following single leg trip from Guelph ON to Trenton ON (set speed was 130 kph, outside temp was -14c, headwind of 2 meters/second, interior heat set at 19c):8B22E5AF-4574-451D-8B0D-75F48A08F1F7.webp

In the summer, that 243 km leg will take between 50% and 55% of my SOC depending on the wind factor.

This particular trip, whose total elapsed time was 2+12, took 79% (the 401 was bare and dry).

Last edited:

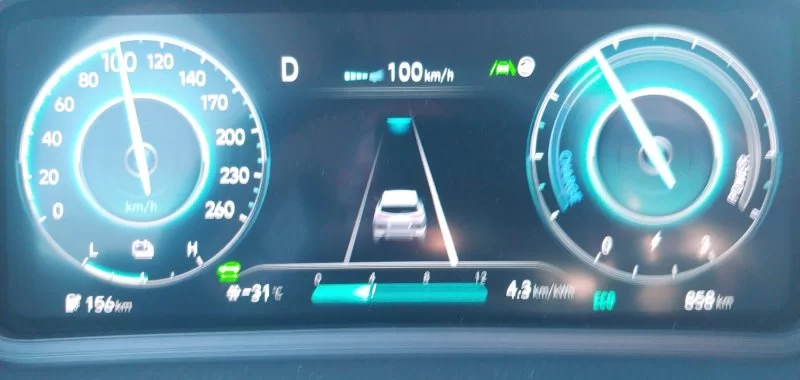

I can't say I've read and digested all of this thread but I'm going to add a few more data points. In December I was able to drive our 2022 Kona Electric Preferred in temperatures ranging from -30 to -36. The roads were mostly clear. Wind was negligible. My partner took some pictures of the dash display. KonaElectricWinter1.webp

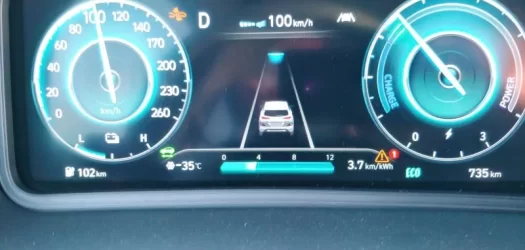

The error message you see is just that the sensor array for the cruise and lane assist is iced up (along with a good part of the windscreen). This shot was about 100km into our trip so the battery pack may still have been warming up. The car had been charged to 100% on level 1. I was maintaining a speed of 100km/h for more or less the whole time.
Sorry for the blurry shot. In this one the battery has been level 3 fast charged to 85% which definitely warmed the pack. We did hit the mid 40s kwh rate on the charge but I don't think we got up to the 70s.

It really is a different experience below about -25C. At that point the resistance heater is essential, if just to keep the ice from obscuring forward and side view mirror vision. It's not fog, it's a thin layer of ice that forms from the moisture in the car. At city speeds it's possible to keep this at bay but at freeway speeds it's a battle of attrition. We found that a higher cabin temperature of 23C and low fan speed of 2 set to the windscreen only kept things drivable and we were warm right down to our ankles. Our feet were freezing though so we would shoot a bit of warm air down every once in a while. It had to be switched back to the windscreen as that would start icing up immediately. We bought a heated blanket for our little backseat passenger and he was happy the entire time. We are considering battery heated socks for driving days like this. Fortunately these temperatures are usually a week or 2 here during the winter. We are also considering renting an ICE vehicle for trips in the future when we know the temperatures will be like this. At least until the charging infrastructure is good enough to make the range reduction an annoyance and not a danger.

The air is denser and the heater has to work full time. I think that's pretty much where the range goes.

I can't say I've read and digested all of this thread but I'm going to add a few more data points. In December I was able to drive our 2022 Kona Electric Preferred in temperatures ranging from -30 to -36. The roads were mostly clear. Wind was negligible. My partner took some pictures of the dash display. View attachment 15047

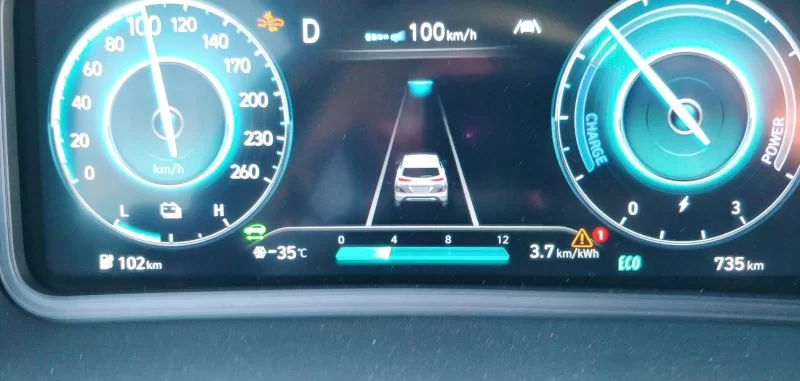

The error message you see is just that the sensor array for the cruise and lane assist is iced up (along with a good part of the windscreen). This shot was about 100km into our trip so the battery pack may still have been warming up. The car had been charged to 100% on level 1. I was maintaining a speed of 100km/h for more or less the whole time.
View attachment 15048
Sorry for the blurry shot. In this one the battery has been level 3 fast charged to 85% which definitely warmed the pack. We did hit the mid 40s kwh rate on the charge but I don't think we got up to the 70s.

It really is a different experience below about -25C. At that point the resistance heater is essential, if just to keep the ice from obscuring forward and side view mirror vision. It's not fog, it's a thin layer of ice that forms from the moisture in the car. At city speeds it's possible to keep this at bay but at freeway speeds it's a battle of attrition. We found that a higher cabin temperature of 23C and low fan speed of 2 set to the windscreen only kept things drivable and we were warm right down to our ankles. Our feet were freezing though so we would shoot a bit of warm air down every once in a while. It had to be switched back to the windscreen as that would start icing up immediately. We bought a heated blanket for our little backseat passenger and he was happy the entire time. We are considering battery heated socks for driving days like this. Fortunately these temperatures are usually a week or 2 here during the winter. We are also considering renting an ICE vehicle for trips in the future when we know the temperatures will be like this. At least until the charging infrastructure is good enough to make the range reduction an annoyance and not a danger.

The air is denser and the heater has to work full time. I think that's pretty much where the range goes.

you need to pump up the fan or use auto to keep it cozy inside - you do lose more range though…
And yeah, I actually find myself switching between ‘Front’ and ‘Auto’ setting often when it’s cold out - my last trip out to the cottage was -37C outside…

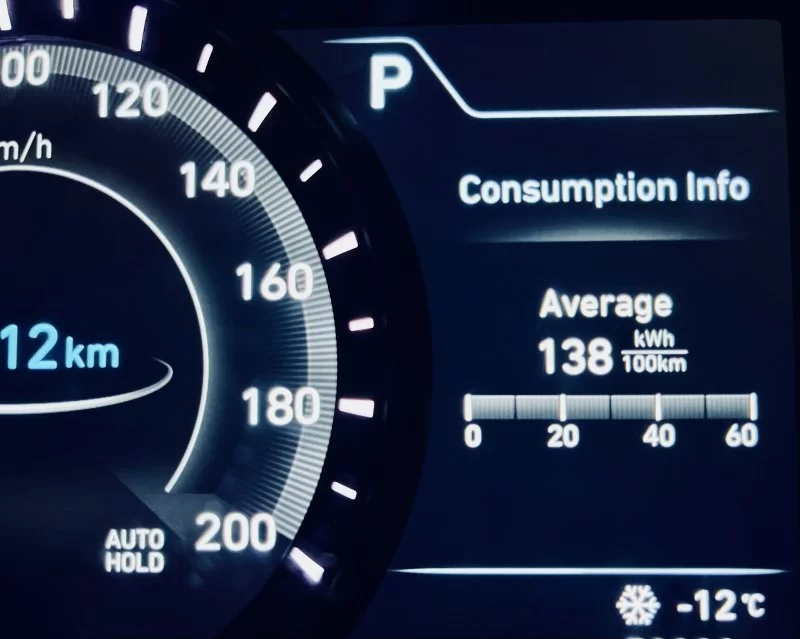

That is the highest I have seen, less than 50km range on a full charge. Basically 10X normal consumption.
Even my old Leaf could do better than that:eek:

agreed…the worst I’ve ever seen on my Kona was 42kwh - outside temp was -41C, cabin set to 22C, heated seats and heated steering wheel on, 120km/h….that change quickly once I got down to 105km/h, consumption went down to 31kwh…

I have something slightly weird going on. After my battery replacement my GOM ranges seemed spot on with those I've seen over 3 years with the old battery. However, I got my tires swapped out last week and immediately I saw a distinct drop in projected range. 80% at -10° used to be about 330km. Now at +15° it's 325km. It used to be in the high 300s. I'm wondering what happened?
I'm at 80% and my GOM says 329km. It's -10°C. I drive secondary roads and intracity 90% of the time, cruise set at 90kph. My GOM reflects those averages. However, when I charge to 100% and drive 110kph on the highway at sub zero temps I have had a range of around 300+km. That's with (now) three winters and cold shoulder-seasons behind me. Summer is routinely between 400-480km with the same driving style.
