What’s this connector for?
- Thread starter su_A_ve
- Start date
- Replies 20
- Views 8K
Kerbe
Well-Known Member
I, too, have wondered about this unprotected connector: I've asked several Honda service techs - at different dealerships - and none have been able to identify it.
I'm really happy I finally get to be the one that solves a Clarity mystery. That connection is for the flux capacitor. I understand that Honda intentionally omitted its description from the owner's manual to avoid potential recall orders from the EPA over some missing Clarity drivers.
Kerbe
Well-Known Member
There were 88 of them, correct? All from a small, oxymoronically-named town in California, as I recall...
su_A_ve
Active Member
I had tried to add a Mr. Fusion, but never got the correct adapter from Crutchfield.
turtleturtle
Active Member
Does it show up on a parts diagram? From there we could see what it’s connected to.
MrFixit
Well-Known Member
I will venture a guess...
It seems to be associated with the Inverter Coolant Overflow Tank.
Perhaps it is used during service.
for instance, maybe it allows the technician to activate the coolant pump when flushing / adding coolant to the inverter system...
The parts diagrams are nowhere near detailed enough to show this. I'm sure if is just a branch off of the main wiring harness.

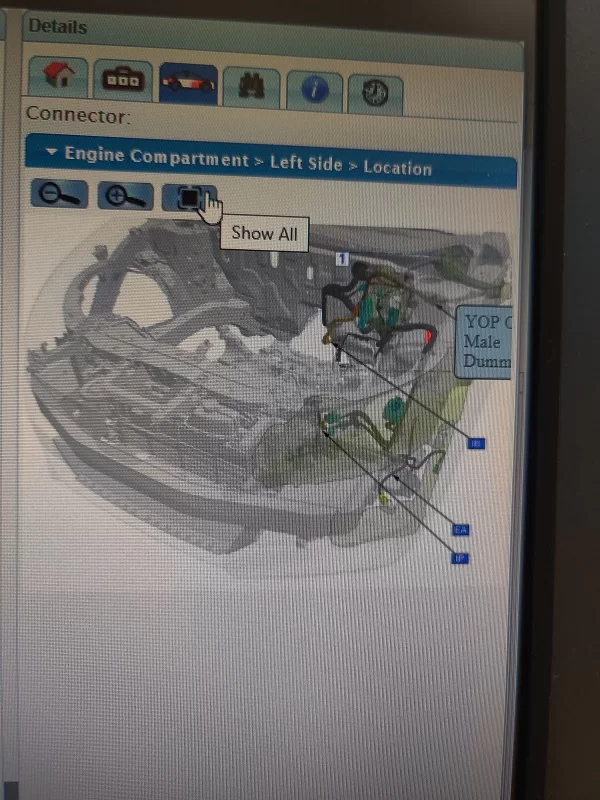

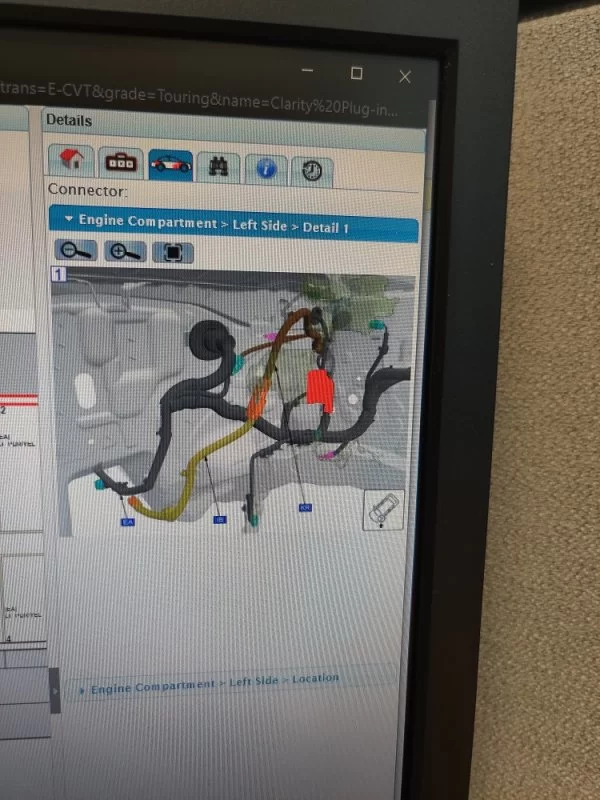

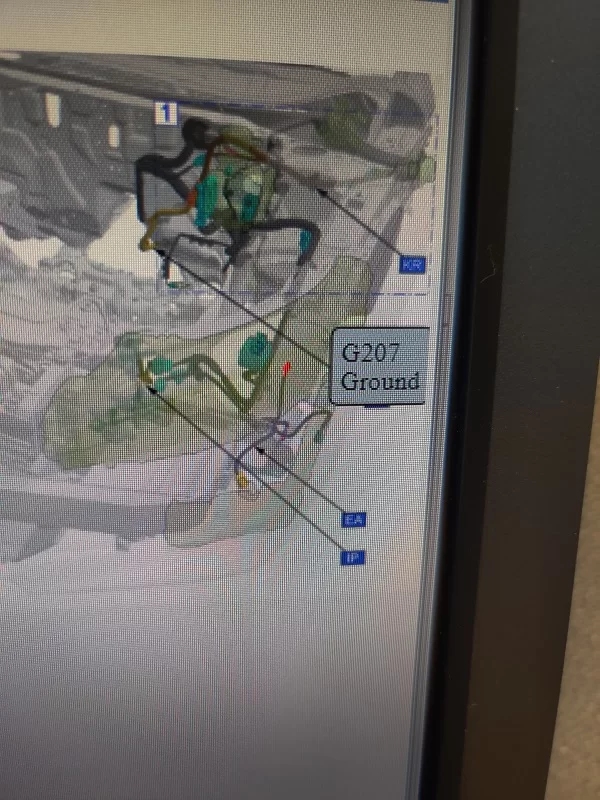

There is a chance that it shows up on a wiring diagram of some sort, or in service documentation (which we don't have ready access to).
It seems to be associated with the Inverter Coolant Overflow Tank.
Perhaps it is used during service.
for instance, maybe it allows the technician to activate the coolant pump when flushing / adding coolant to the inverter system...
The parts diagrams are nowhere near detailed enough to show this. I'm sure if is just a branch off of the main wiring harness.
There is a chance that it shows up on a wiring diagram of some sort, or in service documentation (which we don't have ready access to).
MrFixit
Well-Known Member

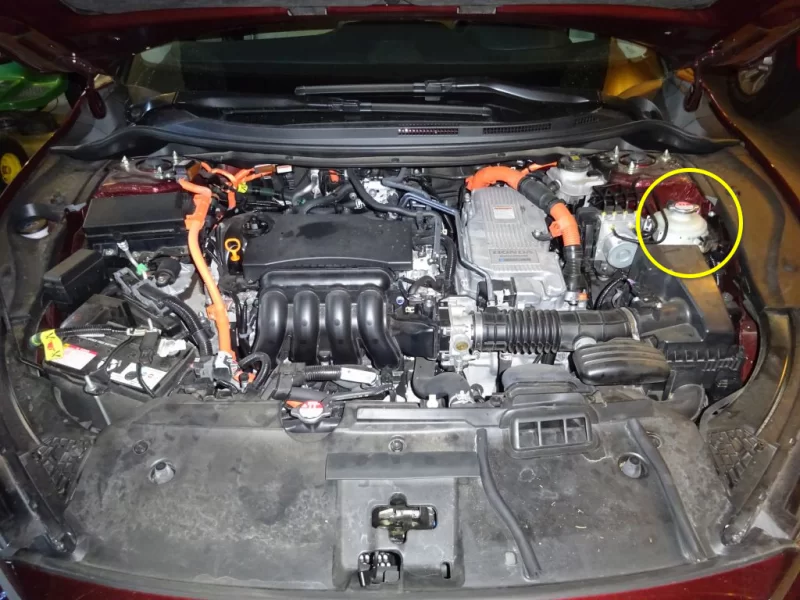

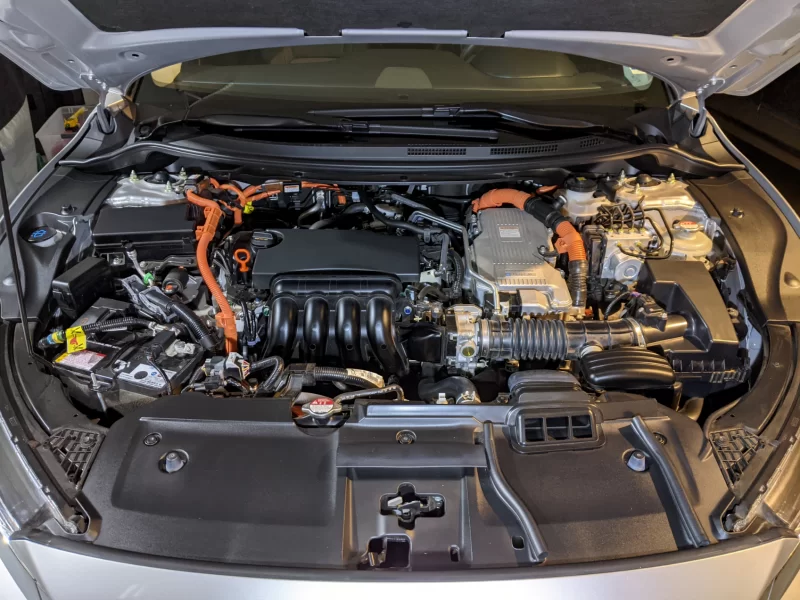

Here is the location of this connector (on same bracket as Inverter Coolant Overflow Tank):

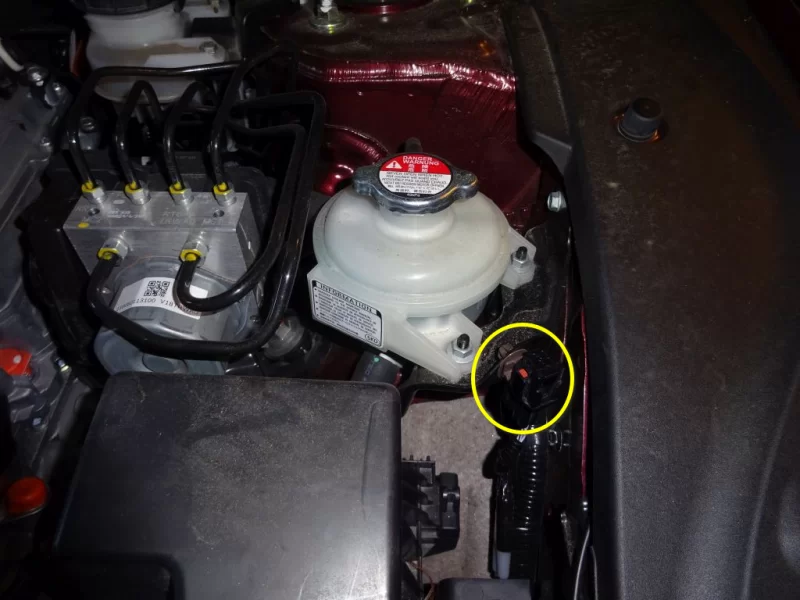

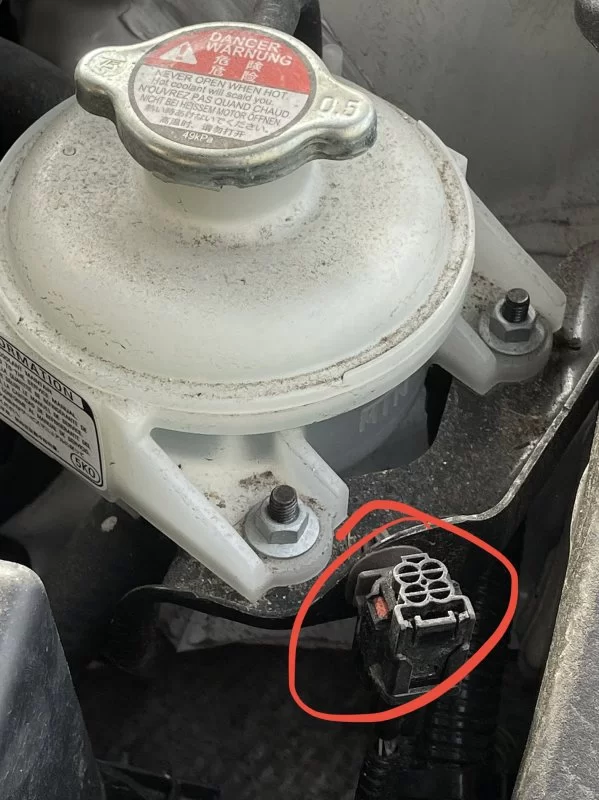

Here is a closer view:
The connector has 4 wires (light gauge).
The colors are a little bit subjective, but I would say that two of the wires are Gray with a Black tracer, and the other two are Gray with a Brown tracer.

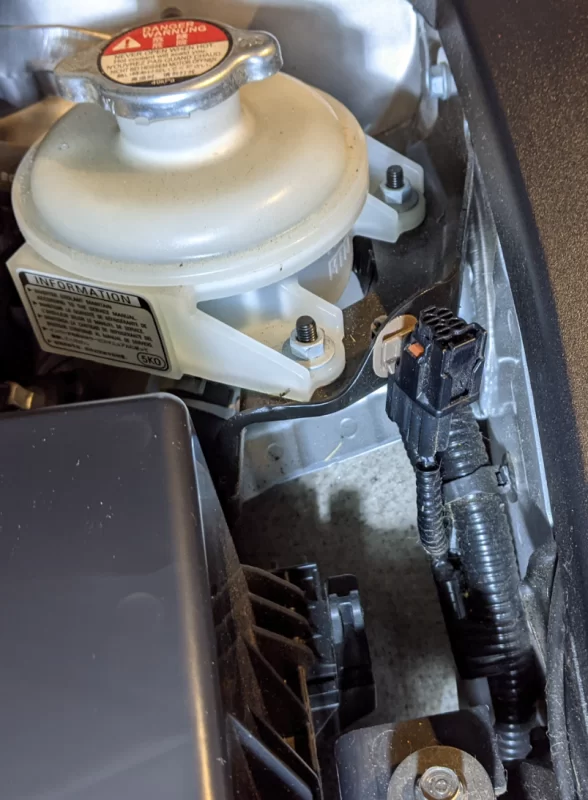

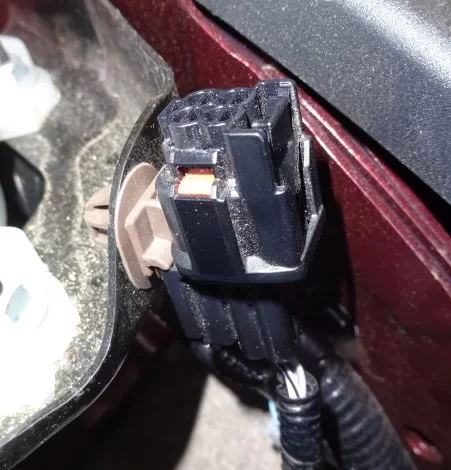

Even closer:
Here is a closer view:
The connector has 4 wires (light gauge).
The colors are a little bit subjective, but I would say that two of the wires are Gray with a Black tracer, and the other two are Gray with a Brown tracer.
Even closer:
Last edited:
Mowcowbell
Well-Known Member
A little 303 Protectant, and I can see it now.

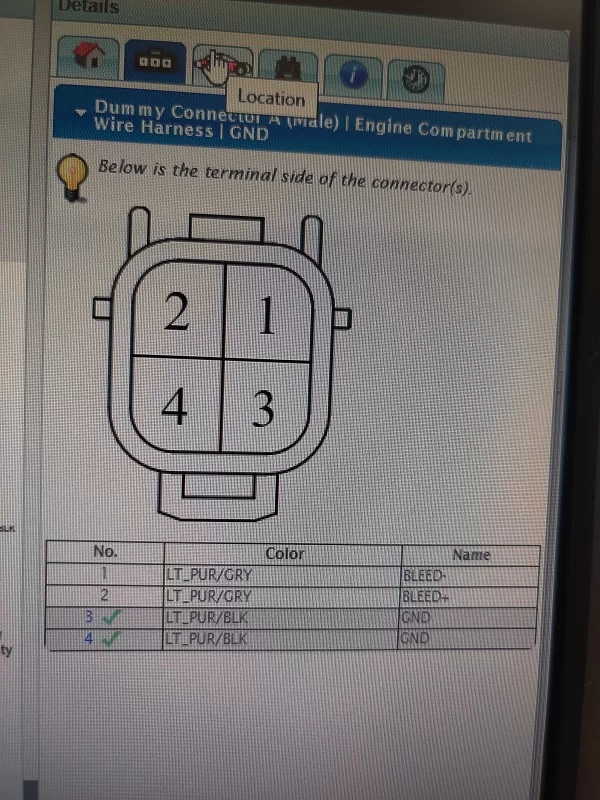

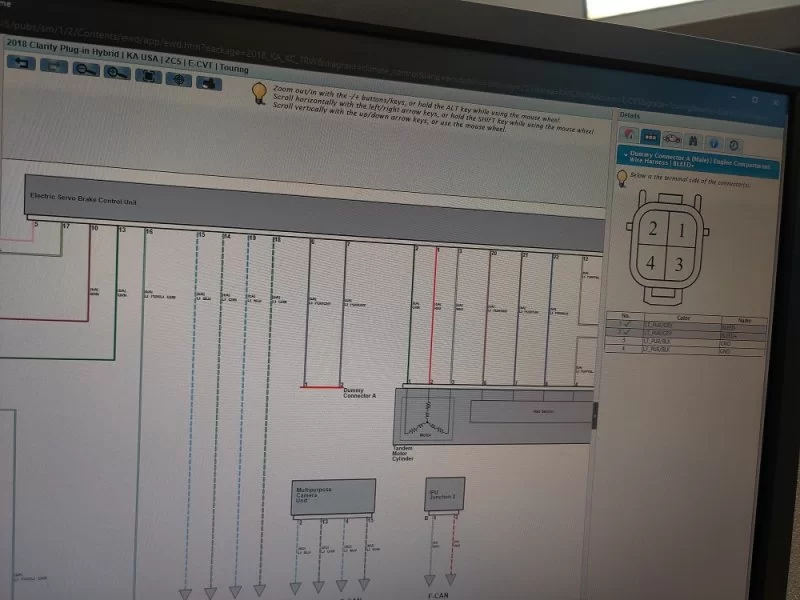

Very possible. I looked into it and they do not reference the connector. They only reference using the Honda Diagnostic Tool to turn it on and off. Their procedure automatically varies the pump speed over a period of 10 minutes. Since you mentioned it, I would agree that it is very likely for that, but for people who don't have access to the tool, however their service manual doesn't accommodate people working on their own car lol
A while back, I asked in another of this forum's threads about replacing the brake fluid on a Clarity. The replacing would involve bleeding the brakes. Given the complexity of the Clarity's braking system, I suspect that the bleeding is not as simple as on older vehicles with simpler braking systems. It would be helpful both in learning more about the connector and its use as well bleeding and replacing the Clarity brake fluid to learn more about the Clarity brake fluid replacing and bleeding procedures.
Could TurboD16 look up and post the procedures for replacing and bleeding the Clarity brake fluid?
LeoP
Could TurboD16 look up and post the procedures for replacing and bleeding the Clarity brake fluid?
LeoP
There are descriptions of changing the Clarity's brake fluid in the MM 0 1 7 Brake Fluid Change thread, but it sounds like you've already checked out that thread.
Thanks for the link. I was the person who posted the link on how to bleed the brakes on an Hybrid Accord after the servo pump motor was replaced in the thread mentioned. However, I have still not been able to see the actual procedure for replacing the fluid when the motor is not changed and the fluid in the servo assembly is emptied when the motor is removed. The reason I posted the above request is that often in such servo systems, it is difficult to replace the fluid in the servo system unless the pump is run.
For example, this is the case with my Volvo. I need to run a procedure in the diagnostic hook up to the OBDII connector to properly replace the fluid or bleed the ABS servo and brake system after replacing a caliper or line. I am curious about a possibly similar need for the Clarity.
LeoP
For example, this is the case with my Volvo. I need to run a procedure in the diagnostic hook up to the OBDII connector to properly replace the fluid or bleed the ABS servo and brake system after replacing a caliper or line. I am curious about a possibly similar need for the Clarity.
LeoP
